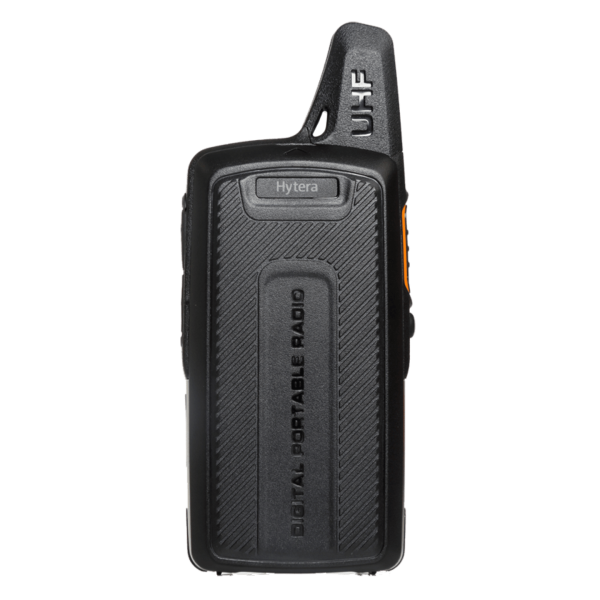

Hytera PD362i, Slim, Pocket Size Portable Digital Radio

Description

Radio Features
• Size: 4.21″ x 2.16″ x .9″
• Weight: 5.64oz (160g)
• UHF 400-470MHz Power 1-3 Watts
• 256 channels, 16 zones
• 12.5/25kHz selectable channel spacing
• Dual mode (Analog and Digital)
• 3-line monochrome display with limited keypad
• 16 hours under a duty cycle of 5-5-90 in digital mode
• MIL-STD-810 C/D/E/F/G standards
• IP54 Compliant
• Roaming in multi-site repeater system
• Scan (analog channel only or digital channel only)
• Emergency Alarm (via programming)
• VOX (external only via accessory)
• Pseudo Trunk
• One touch call / text message
• Digital voice call function
• 3 Year Standard Warranty (Radios only)

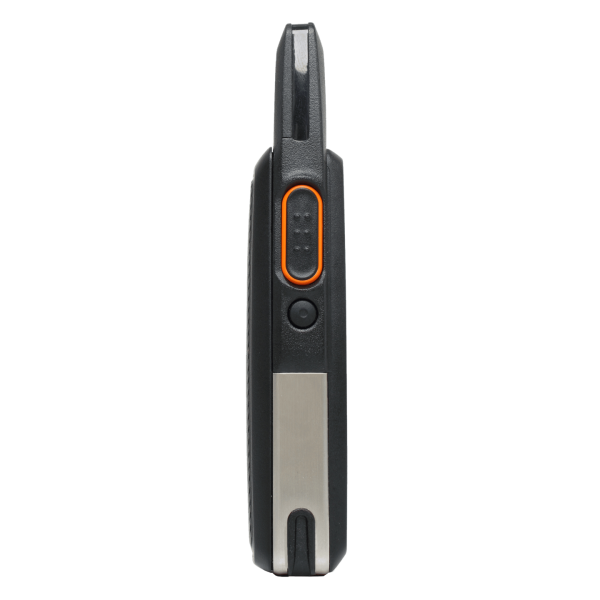

ERGONOMIC AND LIGHT WEIGHT

Tactile buttons for no-look PTT and emergency calling. Compact antenna makes the PD362i feel like a cellular phone. The pocket-size design that weighs less than 6 ounces

HIGH-QUALITY AUDIO

Audio equalizer adjusts low, mid, and high frequency gain

ANALOG AND DIGITAL DUAL MODES

Supports both analog and digital modes. Allows switching between the two operation modes for communication with analog radios

ANALOG AND DIGITAL AUTO DETECT

Detects the signal type and automatically switches between analog and digital mode

Technical Specifications

General

Frequency Range	UHF: 400-440MHz UHF: 430-470MHz
Channel Capacity	256 (16 zones with 16 channels per zone)
Zone Capacity	16 Zones with 16 Channels per Zone
Channel Spacing	25/12.5kHz
Operational Voltage	3.7W
Battery	2000mAh (Li-Ion)
Battery Life (5/5/90)	12 hours Digital, 10 hours Analog
Weight	5.64oz (160g)
Dimensions	4 3/16” x 2 11/16” x 29/32” (106 x 55 x 23mm)
Frequency Stability	± 0.5ppm
Antenna Impedance	50Ω

Receiver

Digital Sensitivity	0.22µV (BER 5%)
Analog Sensitivity	0.22µV (Typical) (12dB SINAD) 0.4µV (20dB SINAD) 0.22µV (12dB SINAD)
Adjacent Selectivity	TIA-603: 60dB @ 12.5kHz, 70dB @ 25kHz ETSI: 60dB @ 12.5kHz, 70dB @ 25kHz
Spurious Response Rejection	TIA-603: 70dB @ 12.5/25kHz ETSI: 70dB @ 12.5/25kHz
Intermodulation	TIA-603: 70dB @ 12.5/25kHz ETSI: 65dB @ 12.5/25kHz
Hum and Noise	40dB @ 12.5kHz, 43db @ 20kHz, 45dB @ 25kHz
Rated Audio Power Output	0.4W
Rated Audio Distortion	≤5%
Audio Response	+1 to -3dB
Conducted Spurious Emission	<-57dBm

Transmitter

RF Power Output	UHF 1.5W – 3W
FM Modulation	11K0F3E @ 12.5kHz 16K0F3E @ 25kHz
4FSK Digital Modulation	12.5kHz Data Only: 7K60FXD 12.5kHz Data and Voice: 7K60FXW
Conducted/Radiated Emission	-36dBm 1GHz
Modulation Limiting	±2.5kHz @ 12.5kHz ±5.0kHz @ 25kHz
FM Hum and Noise	40dB @ 12.5kHz, 45dB @ 25kHz
Adjacent Channel Power	60dB @ 12.5kHz, 70dB @ 25kHz
Audio Response	+1 to -3dB
Audio Distortion	≤3%
Digital Vocoder Type	AMBE++
Digital Protocol	ETSI-TS102 361-1,-2,-3

Environmental

Operating Temperature	-22oF to +140oF (-30oC to +60oC)
Storage Temperature	-40oF to +185oF (-40oC to +85oC)
ESD	IEC 61000-4-2 (Level 4)±8kV Contact, ±15kV Air
Dust and Water Ingress	IP54 Standard
Humidity	Per MIL-STD-810 C/D/E/F/G Standard
Shock and Vibration	Per MIL-STD-810 C/D/E/F/G Standard
